MC 5/2__________________________________________________________________________________ Back to Complete Sets

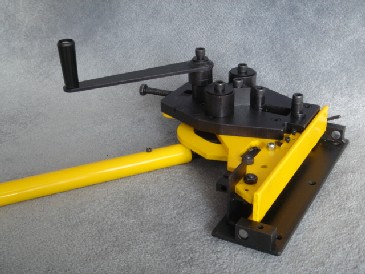

This tool is one of the most important and at the same time most versatile tools in our program.
Cutting, Punching, Riveting, Rolling & Bending, five essential operations in one tool.
No compromises have been done from our side in quality and tooling this fantastic combination.
To make a tool similarly looking is easy, but to make a tool equally working, this rests our secret.

Cutting: With the M5 in vertical operating position you cut flat strips up to 40 x 6mm (1 5/8" x 1/4") or round or square bars up to 6mm (1/4").


Punching: For connecting the ornamental elements holes are to be punched into the material. Standard hole diameter is 5mm (3/16")and 6mm (1/4") - we offer optional punch blocks for hole diameters of 3mm (1/8").


Riveting: With M5 in horizontal operation position you connect parts between the rivet blocks. By exerting pressure on the lever, the locking bar produces so much power that you can easily press rivets with a diameter up to 6mm (1/4").


Angle bending: With the M5 in horizontal operating position you can bend angles up to 60° depending on the position of the angle bending block. The pressure exerted on the lever of the locking bar determines the degree of an angle.
Flat strips up to 40 x 6mm (1 5/8" x 1/4") or round or square bars up to 14mm (1/2").


Rolling: The rolling device allows to form curves or to roll circles of any diameter. The pressure exerted on the lever of the locking bar determines the radius of a curve or circle. Flat strips up to 40 x 6mm (1 5/8" x 1/4") or round or square bars up to 14mm (1/2").

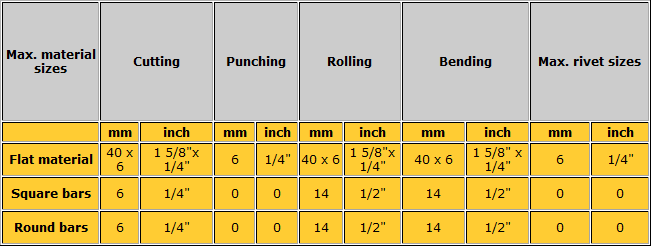

Note: All tools are supplied complete with operating instructions and spare parts list (VCD - Video & Booklet). The sizes in the specification tables are for Hot rolled Black Mild Steel Bar & Annealed Bright Mild Steel Bar (DIN 37).
